Main conclusion
The system named in a complaint does not determine the replacement scope
A transmission or electronic-system symptom does not automatically identify a complete assembly replacement. In these files, the first official path may instead involve software, adjustment or diagnosis of a smaller component. The inference is to establish the applicable path before applying a replacement benchmark.
Evidence scope: All 21 non-recall files in the retained collection; manual editorial classification. Source snapshot: Source records reviewed 2026-08-02; classification published 2026-10-12. The interpretation below uses these retained inputs.
Two software, three service or adjustment, six mixed or diagnostic and ten specified component paths. This small selected collection is not a breakdown sample.
Retained FixCatalogue files, August 3, 2026. Editorial analysis October 12, 2026.

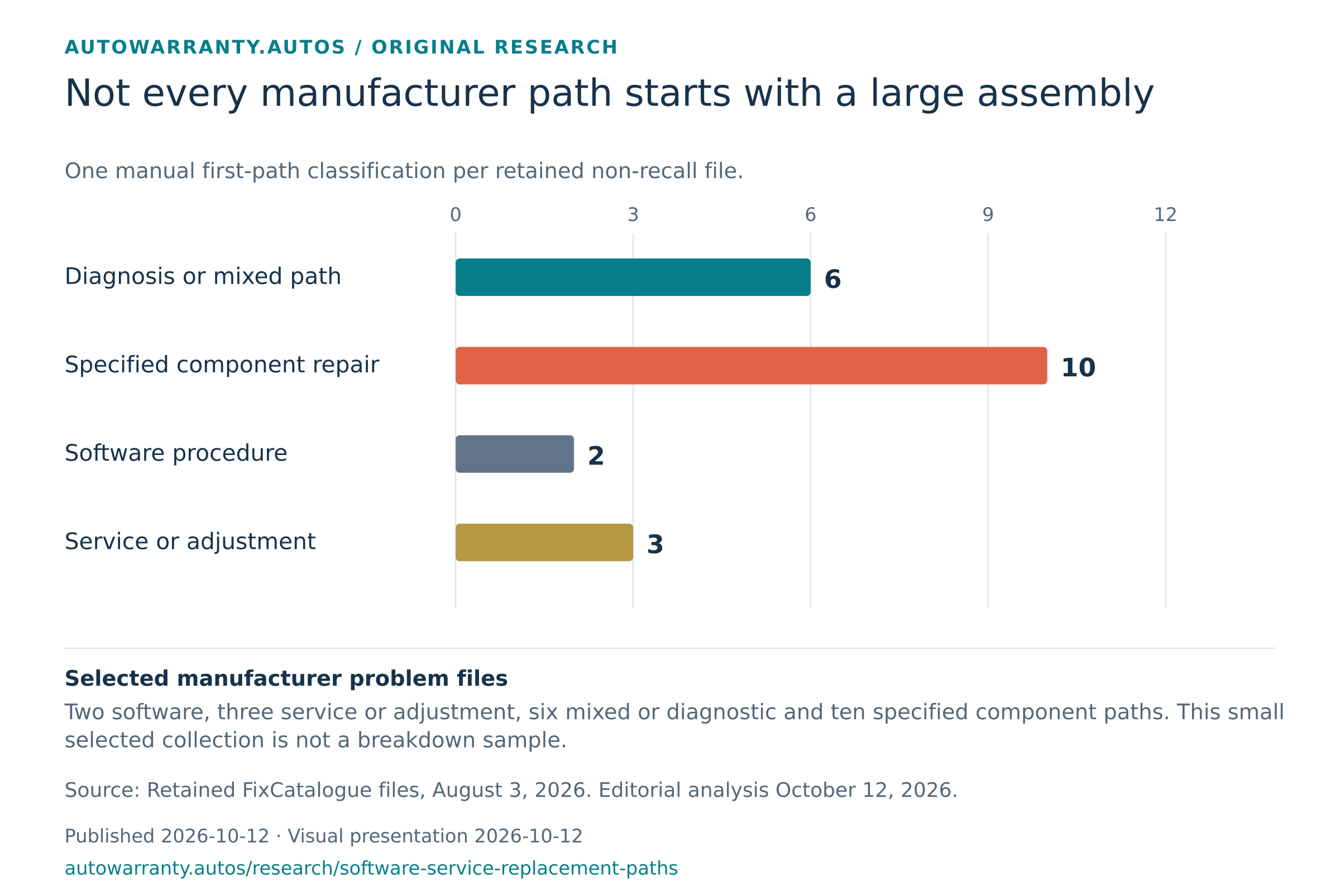

Read the chart as a table
| Record or scenario | Selected manufacturer problem files |
|---|---|
| Diagnosis or mixed path | 6 |
| Specified component repair | 10 |
| Software procedure | 2 |
| Service or adjustment | 3 |
Analysis
What the procedure adds beyond the name of the system
The two software procedures demonstrate an important scope distinction. A documented transmission-related condition can direct a matching calibration, and a matching infotainment condition can direct a software update. A price for replacing the full unit would describe a different job from the retained instruction for that stated condition.
The three service or adjustment files and six mixed or diagnosis-dependent files add another distinction: the procedure can depend on the test result. A mixed path may still lead to hardware work, and an adjustment path may contain small parts. The ten specified-component files also do not automatically identify the largest possible assembly; the retained Mazda and Honda examples concern valve seals and a compressor shaft seal.
The categories explain how a repair scope is determined, rather than which type of repair is common in the market. These are 21 selected files with no observed outcome or price comparison. They support asking whether the estimate follows the applicable procedure, but they cannot establish a software-versus-hardware frequency or a saving from choosing a smaller repair.
Finding 01
The manufacturer instruction can narrow the job
The Lexus RX 350 upshift file directs a technician to verify the condition and install the applicable ECM calibration. The Subaru Outback infotainment file directs a matching software update. Those retained procedures do not direct replacement of the full transmission or infotainment unit for the stated condition.
Three further files describe service or adjustment: a Lexus moonroof procedure, Toyota mirror reinforcement and a Volkswagen front-drain action. Some of those involve small parts or conditional replacement. We group them by the stated first procedure, not by whether any hardware is used.
These five files are selected examples from a small editorial collection. Their share cannot estimate how often real repairs need software rather than parts.
The full report retains affected vehicles, review dates and primary citations. Diagnosis and scope checks remain necessary.
Retained FixCatalogue files, August 3, 2026. Editorial analysis October 12, 2026.

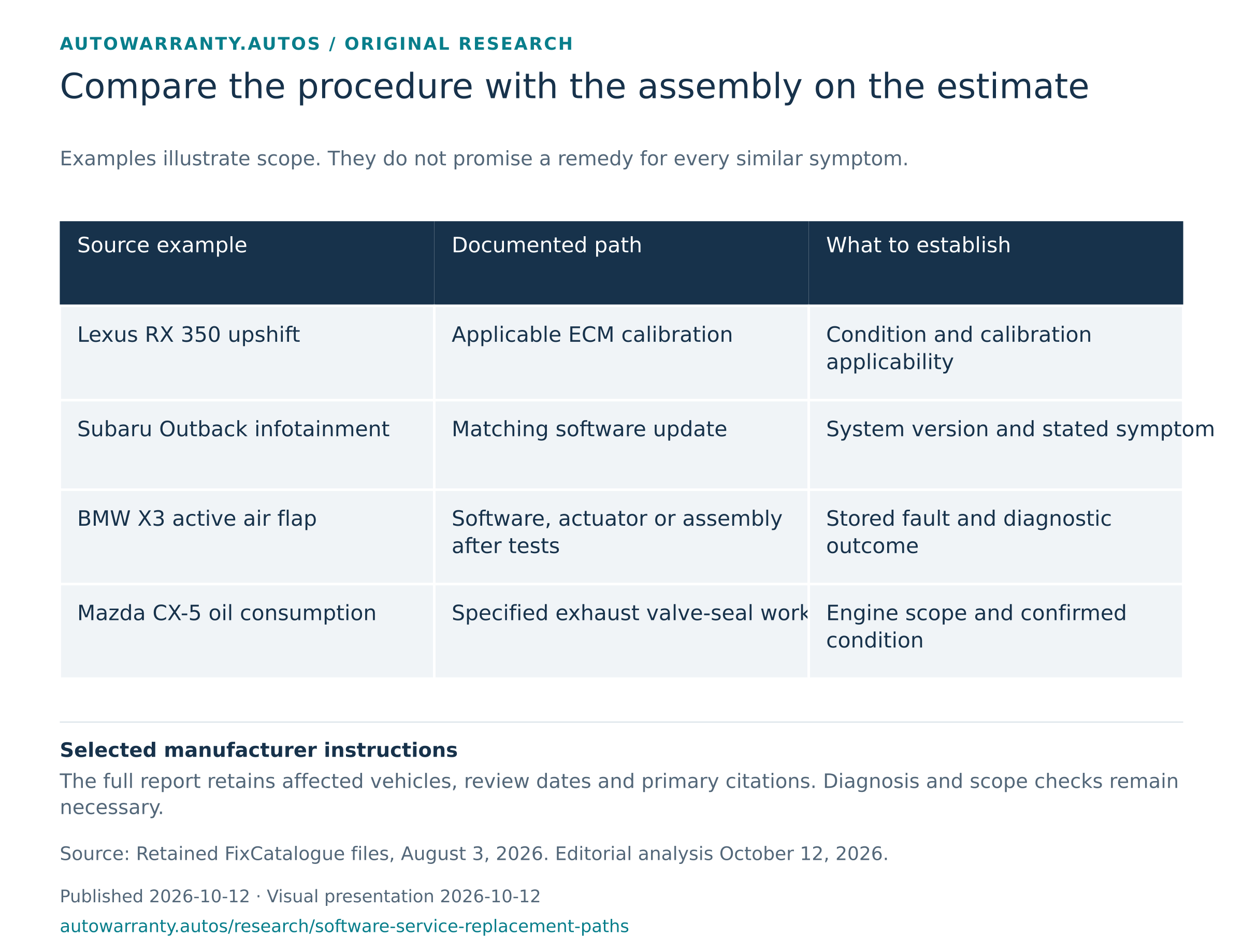

Read the chart as a table
| Source example | Documented path | What to establish |
|---|---|---|
| Lexus RX 350 upshift | Applicable ECM calibration | Condition and calibration applicability |
| Subaru Outback infotainment | Matching software update | System version and stated symptom |
| BMW X3 active air flap | Software, actuator or assembly after tests | Stored fault and diagnostic outcome |
| Mazda CX-5 oil consumption | Specified exhaust valve-seal work | Engine scope and confirmed condition |
Finding 02
A mixed path needs the diagnostic result
Six records have a diagnosis-dependent or mixed path. BMW's active-air-flap record can lead to software, an actuator or a lower assembly depending on the stored fault and test. Mercedes-Benz's 48-volt record uses code-specific guided diagnosis and can involve software, a connection or a battery remedy.
Audi's pump record requires confirmation of an active leak. Nissan's CVT record begins with preserving codes and following an inspection path. These records are reasons to ask for the diagnostic basis, not promises that a smaller repair will solve every similar symptom.
Finding 03
Specified hardware still does not always mean the largest assembly
Ten files specify a component repair after the condition and vehicle scope are confirmed. Mazda's documented oil-consumption procedure concerns exhaust valve seals, while Honda's compressor-shaft-seal procedure concerns that seal. A complete engine or compressor benchmark does not price those particular jobs.
The practical conclusion is to compare the estimate's assembly with the source's repair path. Keep the engine, build range, codes and eligibility limits beside that comparison. Diagnosis and the applicable professional procedure decide which action fits the individual car.
Conclusion
Require a diagnostic reason for the proposed replacement scope
Ask which condition was confirmed, which manufacturer procedure applies and why the proposed component matches that path. A smaller procedure should not be assumed to solve an unrelated hardware fault, and a complete replacement should not be inferred from a symptom alone. The analysis identifies a scope check to make before using a price; it does not substitute for diagnosis or estimate repair savings.
Explore the research and press resources →For reporting and citation
An interpretation you can quote
The system named in a complaint does not determine the replacement scope. AutoWarranty's review of 21 selected non-recall files shows why the confirmed condition and manufacturer procedure must identify the job an estimate prices.
AutoWarranty.Autos analysis
The numeric finding behind this interpretation
A review of AutoWarranty's 21 retained non-recall manufacturer files identifies two software procedures, three service or adjustment paths, six mixed or diagnostic paths and ten specified component repairs. The selected files do not measure breakdown frequency.
AutoWarranty.Autos analysis
- Population
- All 21 non-recall files in the retained collection; manual editorial classification
- Source snapshot
- Source records reviewed 2026-08-02; classification published 2026-10-12
- Analysis and presentation
- 2026-10-12; original publication 2026-10-12
The wording above is a suggested attributed quotation from our analysis. Link to this report and keep its population and assumptions with the finding.
Read the documented examples
Manufacturer documented
Bucking on early upshifts or low-speed surge
Lexus RX 350 · 2016, 2017, 2018, 2019
Lexus's ECM bulletin calls for reprogramming only after a technician reproduces one of two narrow driving patterns.
- Affected scope
- 2016 to 2019 Lexus RX 350. Specified 2018 to 2019 RX 350L calibrations are included. Drivetrain, WMI and current calibration determine applicability
- Manufacturer check or remedy
- A Lexus technician uses vehicle data to reproduce the published condition, checks the current calibration and installs the applicable updated ECM software.
Safety and eligibility limits in this source
- The vehicle loses propulsion, slips out of gear or cannot maintain a safe speed
- Shifts become violent or are accompanied by grinding or a fluid leak
- A warning light flashes or the engine runs severely rough
- Do not replace transmission parts solely from the symptom wording. The bulletin applies only when its operating criteria and calibration checks match.
- Do not attempt repeated acceleration tests in traffic or operate a phone while driving.
Manufacturer software procedure
Infotainment screen freezes, goes black or reboots
Subaru Outback · 2020, 2021, 2022
A frozen center display or repeated rebooting is among the conditions addressed by Subaru's Gen 4 software updates; hardware faults remain possible.
- Affected scope
- 2020 to 2022 Subaru Outback with the Gen 4 Denso CP1 system. Base, mid and high head units use different update files. Outback Wilderness uses a separate update package where specified
- Manufacturer check or remedy
- A Subaru technician identifies the head-unit variant and current software, then installs the complete matching file set or uses the supported over-the-air path where applicable.
Safety and eligibility limits in this source
- The loss of the display prevents safe use of essential vehicle or climate controls
- The rear-view camera is unavailable and the vehicle cannot be reversed safely by other means
- There is an electrical burning smell, smoke or repeated battery failure
- An interrupted or mismatched USB update can leave the display or climate interface inoperative. Do not use files copied from another model or online forum.
- Do not troubleshoot the display while moving. Stop somewhere safe before disconnecting devices or restarting the system.
Manufacturer diagnostic bulletin
Active grille air-flap warning or fault
BMW X3 · 2019
An engine light with active air-flap faults fits BMW's diagnostic bulletin for affected X3 vehicles produced through August 2019.
- Affected scope
- BMW G01 X3 vehicles produced up to August 2019. The stored codes and upper or lower flap location determine the repair
- Manufacturer check or remedy
- Retrieve the stored BMW fault codes and run the radiator-blind functional test. The bulletin may call for software, an upper actuator or a complete lower assembly depending on the result.
Safety and eligibility limits in this source
- The engine temperature rises, an overheating warning appears or coolant is escaping
- Loose grille parts are contacting a fan or could fall into traffic
- Replacing the complete grille assembly without the prescribed test can replace the wrong component.
- Do not put fingers or tools into the moving flap mechanism.
Manufacturer repair procedure
2.5 Turbo engine oil level drops between services
Mazda CX-5 · 2021
A low-oil warning with P250F and no visible leak fits the pattern in Mazda's valve-seal bulletin for specified 2021 2.5 Turbo vehicles.
- Affected scope
- Specified 2021 Mazda CX-5 vehicles with the 2.5 Turbo engine. For US vehicles, the bulletin lists VINs below JM3KF******472325 produced before September 14, 2021. Separate VIN ranges apply in Canada and Mexico
- Manufacturer check or remedy
- A qualified engine technician confirms the low level and checks for external leakage. When the bulletin applies, the technician installs eight improved exhaust valve seals with the specified tools.
Safety and eligibility limits in this source
- The oil-pressure warning remains on after startup
- The dipstick shows no oil or the level falls rapidly after topping up
- The engine knocks, rattles loudly, smokes heavily or loses power
- This repair involves the valvetrain and strict piston-position, spring and keeper procedures. It is not suitable for a basic DIY repair.
- A low oil-pressure warning is more urgent than a level reminder. Shut the engine off if oil pressure is lost or mechanical noise begins.
Behind the numbers
How we worked it out
- Select every non-recall record under the retained source classification, yielding 21 files.
- Manually classify the first official path into software procedure, service or adjustment, diagnosis or mixed path, or specified component repair.
- Keep one mutually exclusive category per file. Hardware paths can still be conditional on diagnosis; adjustment paths can contain small or conditional replacement parts.
- Export the source ID, category, affected scope, original review date, retained official-path text and primary citations. The classification is editorial analysis, not a manufacturer-issued taxonomy.
What these figures can't tell you
- The selected collection is not a representative sample of vehicles, failures or repair visits.
- Classification reflects retained descriptions and their first path, not observed outcomes or comparative prices.
- A software entry does not rule out unrelated hardware faults with similar symptoms. No repair savings are estimated.
The download has 21 data rows plus a header, generated from the same inputs as this page. Dates and units are listed in the columns or sources below. A blank field means the information wasn't available.
CSV column definitions
source_problem_idmakemodelprimary_yearassigned_repair_pathaffected_scopeoriginal_review_dateretained_official_pathprimary_citations
Each row is one of the 21 non-recall source files. Assigned repair path is a manual interpretation of the retained manufacturer instructions. It is not a diagnosis or observed repair outcome.
Sources and corrections
- TSB 19-23-39 / 2070349/1 · source or review date May 17, 2023
- SIB 51 21 19 · source or review date Aug 16, 2019
- SIB 17 03 20 · source or review date May 7, 2020
- NHTSA MC-10212631 · source or review date Feb 2, 2022
- 20-NA-142 · source or review date May 2, 2022
- TSB 19-2139 · source or review date Nov 21, 2019
- 21N12 · source or review date Jun 9, 2022
- Service Bulletin 21-018 · source or review date May 28, 2021
- Service Bulletin 23-040 · source or review date May 19, 2023
- NHTSA MC-10186656 · source or review date Jan 27, 2021
- L-SB-0032-19 Rev1 · source or review date Sep 26, 2019
- L-SB-0003-23 · source or review date Feb 2, 2023
- L-SB-0014-22 · source or review date Jun 24, 2022
- NHTSA MC-10206952 · source or review date Jan 31, 2022
- Mazda TSB 01-011/22 · source or review date Nov 17, 2022
- LI54.10-P-069698, Version 20 · source or review date Mar 25, 2025
- NTB19-076 · source or review date Oct 8, 2019
- Subaru Bulletin 15-261-20R · source or review date Oct 1, 2024
- Subaru Bulletin 09-119-24 · source or review date Apr 4, 2024
- Subaru Bulletin 09-80-21 · source or review date Feb 28, 2022
- Customer Support Program 20TE04 · source or review date Oct 29, 2020
- T-SB-0109-20 Rev1 · source or review date Mar 3, 2021
- T-SB-0079-20 Rev1 · source or review date Dec 9, 2020
- Service Action 60E5 · source or review date Dec 3, 2019
- Technical Bulletin 60-19-04 / 2054353 · source or review date Apr 1, 2019
